Type

Desmosedici Stradale 90° V4, counter-rotating crankshaft, Desmodromic timing, 4 valves per cylinder, liquid-cooled

Displacement

1,103 cc

Bore x Stroke

81 x 53.5 mm

Compression Ratio

14.0:1

Power

209 hp @ 12,750 rpm

Torque

89.5 lb-ft @ 11,250 rpm

Fuel Injection

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system

Exhaust

4-2-1-2 system

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down 2.0

Primary drive

Straight cut gears; Ratio 1.80:1

Ratio

1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22

Final drive

Chain 520; Front sprocket 16; Rear sprocket 41

Clutch

Hydraulically controlled slipper dry clutch. Self bleeding master cylinder

Frame

Aluminum alloy "Front Frame" with optimized stiffnesses

Front suspension

Öhlins NPX 25/30 (SV) S-EC 3.0 pressurized 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 3.0 event-based mode

Front Wheel

5-split spokes carbon fibre 3.50" x 17"

Front Tire

Pirelli Diablo Supercorsa SP-V4 120/70 ZR17

Rear suspension

Fully adjustable Öhlins TTX36 (SV) S-EC 3.0 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 3.0 event-based mode. Aluminium Hollow Symmetrical Swingarm

Rear Wheel

5-split spokes carbon fibre 6.00" x 17"

Rear Tire

Pirelli Diablo Supercorsa SP-V4 200/60 ZR17

Wheel Travel (Front/Rear)

125 mm (4.9 in) - 130 mm (5.1 in)

Front Brake

2 x 338.5 x 6.2 mm T-drive finned discs, radially mounted Brembo Monobloc GP4 Sport Production callipers with Race eCBS. Brembo MCS 19.21 master cylinder with remote adjuster. Self bleeding master cylinder.

Rear Brake

245 mm disc, 2-piston caliper with Race eCBS

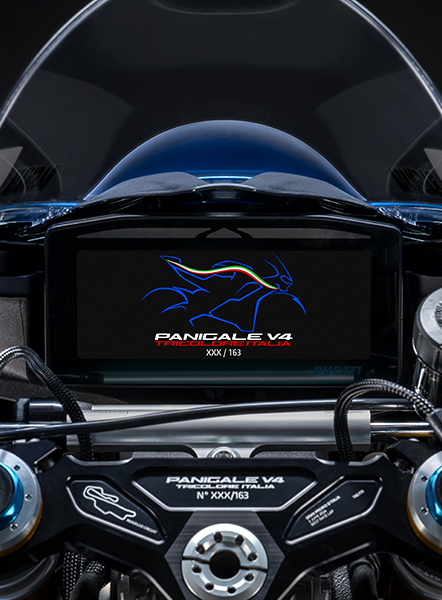

Instrumentation

Digital unit with 6,9" TFT display and Optical Bonding - 1,280 x 480 px resolution

Wet weight no fuel

414 lb (188 kg)

Seat Height

850 mm (33.5 in)

Wheelbase

1,485 mm (58.5 in)

Rake

24°

Trail

98 mm (3.86 in)

Fuel Tank Capacity

4.49 gallon (US) - 17 l

Number of Seats

Single seat
Two seats, if passenger seat kit accessory is mounted

Safety Equipment

Riding Modes, Power Modes, Race eCBS, Ducati Vehicle Observer (DVO), Ducati Traction Control (DTC) DVO, Ducati Wheelie Control (DWC) DVO, Ducati Slide Control (DSC), Engine Brake Control (EBC), Ducati Brake Light (DBL)*, Chain guard in carbon fibre

Standard Equipment

Ducati Power Launch (DPL) DVO, Ducati Quick Shift (DQS) up/down 2.0, Full LED headlights with Daytime Running Light (DRL)*, Ducati Electronic Suspension (DES) 3.0 with Öhlins Smart EC 3.0, Lithium-ion battery, Quick adjustment buttons, Pit Limiter, Auto-off indicators, Carbon fibre wheels, Adjustable rider foot-pegs in milled aluminium, Top triple clamp in milled aluminum, GPS module, Carbon fibre components (mudguards, swingarm protectors, exhaust heatshield, generator protector)

Provided Equipment

Dedicated bike cover, Certificate of authenticity, Special box for additional equipment components, Dedicated wood shipping crate, Racing fuel tank cap in billet aluminum**, Air ducts for front brakes cooling in carbon fibre**, Removing license plate holder kit**, Removing side mirrors kit**, Open dry clutch cover in carbon fibre**

Ready for

Ducati Data Logger (DDL), Anti-Theft, Cruise Control, Tire Pressure Monitoring System (TPMS), USB port*, Ducati Multimedia System (DMS)*, "Turn By Turn" navigator*

Warranty

24 months unlimited mileage

Annual Service

12 months

Oil Service

7,500 miles (12,000 km) / 24 months

Valve Clearance Check

15,000 miles (24,000 km)

Notes

*: Please refer to your local dealer for availability
** Equipment not for road use
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
