*Plus destination charge: $1,295

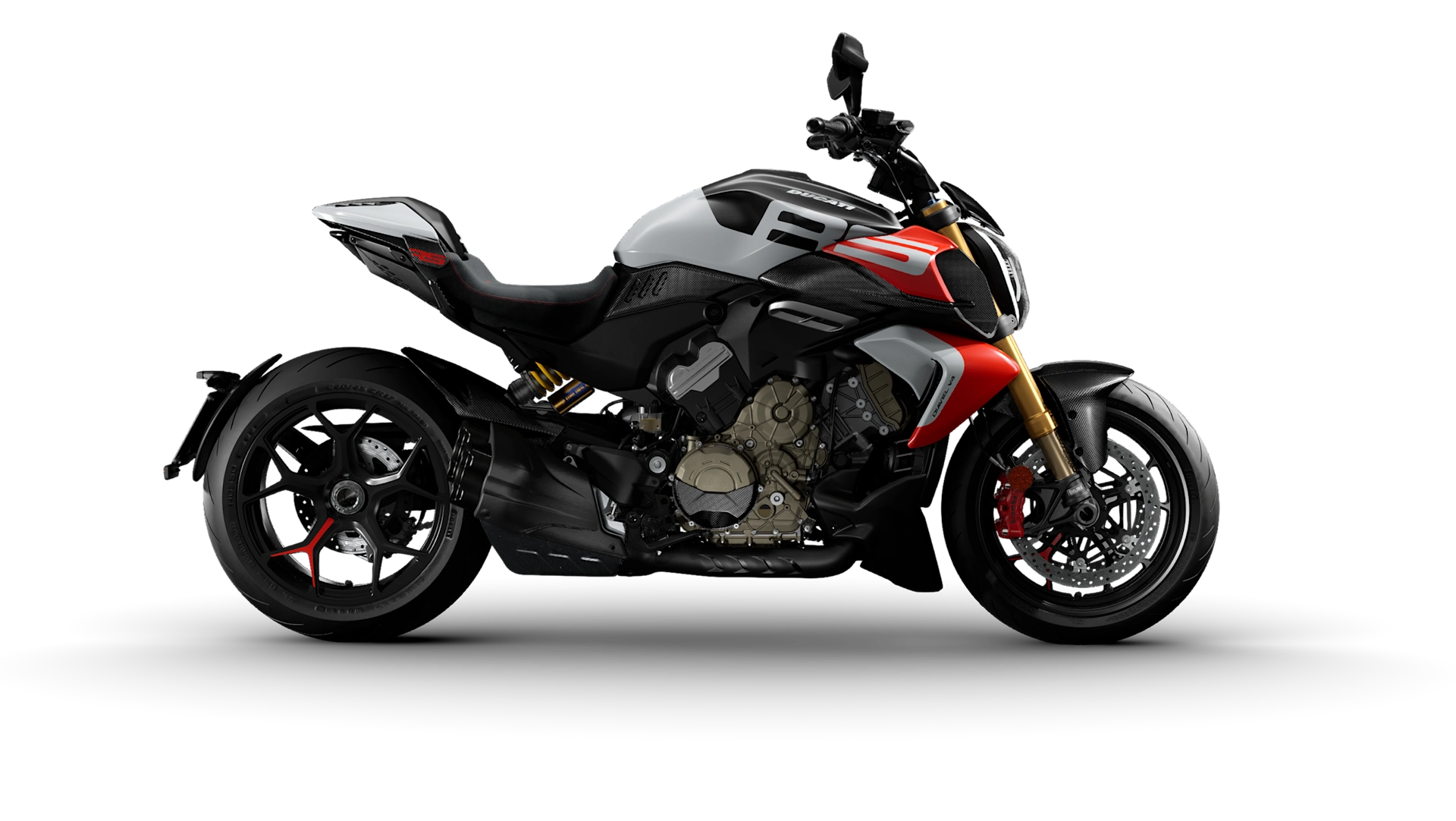

| Diavel V4 RS | |
|---|---|
| Engine | |
| Type | Ducati Desmosedici stradale, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled |
| Displacement | 1,103 cc (67.3 cu in) |
| Bore x Stroke | 3.2 in / 2.1 in ( 81 mm / 53.5 mm) |
| Compression Ratio | 14.0:1 |
| Power | 182 hp (133.8 kW) @ 11,750 rpm |
| Torque | 89 lb-ft (120 Nm, 12.2 kgm) @ 9,500 rpm |
| Fuel Injection | Electronic fuel injection system, Øeq 50mm equivalent elliptical throttle bodies with Ride-by-Wire system |
| Exhaust | Exhaust muffler in titanium |
| Transmission | |
| Gearbox | 6 gears with Ducati Quick Shift up/down 2.0 |
| Primary drive | Straight cut gears; Ratio 1,80:1 |
| Ratio | 1=40/13, 2=36/16, 3=36/20, 4=31/21, 5=29/23 , 6=27/25 |
| Final drive | Chain, front sprocket z15, rear sprocket z43 |
| Clutch | Multiplate dry clutch with slipper action on over-run |
| Chassis | |
| Frame | Aluminum monocoque frame |
| Front suspension | Ø 48 mm fully adjustable Öhlins fork |
| Front Wheel | Forged, 3.5" x 17" |
| Front Tire | Pirelli Diablo Rosso IV, 120/70 ZR17 |
| Rear suspension | Fully adjustable Öhlins shock absorber, aluminum single-sided swingarm |
| Rear Wheel | Forged, 8.0" x 17" |
| Rear Tire | Pirelli Diablo Rosso IV, 240/45 ZR17 |
| Wheel Travel (Front/Rear) | 4.7 in / 5.7 in (120 mm / 145 mm) |
| Front Brake | 2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston calipers, radial master cylinder PR16/19, Cornering ABS |
| Rear Brake | Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS |
| Instrumentation | 5'' TFT color display |
| Dimensions and Weights | |
| Wet weight no fuel | 485 lb (220 kg) |
| Seat Height | 31.1 in (790 mm)
30.3 in (770 mm) with low seat accessory 31.9 in (810 mm) with high seat accessory |
| Wheelbase | 63.1 in (1,602 mm) |
| Rake | 26° |
| Trail | 4.4 in (112 mm) |
| Fuel Tank Capacity | 5.3 US gal (20 l) |
| Number of Seats | 2 |
| Equipment | |
| Safety Equipment | Riding Modes, Power Modes, Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Bosch Cornering ABS |
| Standard Equipment | Ducati Quick Shift (DQS) up/down 2.0, Öhlins suspension, Lithium-ion battery, Forged aluminum wheels, Single seat configuration, Cruise control, Ducati Power Launch (DPL), Ducati Multimedia System (DMS), TFT color display, Hands-Free, Full LED lighting system, Full LED headlight, Self cancelling turn indicators, Lap Timer, Turn-by-Turn navigation system, USB port, Backlit handlebar switches, Front mudguard in carbon fiber , Rear mudguard in carbon fiber , Fuel tank side covers in carbon fiber, Flyscreen in carbon fiber, Clutch cover in carbon fiber, Tail in carbon fiber, Air intake side covers in carbon fiber |
| Provided Equipment | Passenger seat |
| Ready for | Anti-Theft, Tire Pressure Monitoring System (TPMS), Heated grips |
| Warranty | |
| Warranty | 24 months, unlimited mileage |
| Annual Service | 12 months |
| Oil Service | 9,000 mi (15,000 km) / 24 months |
| Valve Clearance Check | 18,000 mi (30,000 km) |
| Notes | |
| Notes | Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information |
The pictures and images of some components may refer to prototypes that could be subject to changes, also of significant nature, in the process of industrialisation and are for information and reference purposes only; they are therefore in no way binding for Ducati Motor Holding S.p.A. - Sole Shareholder Company, subject to the Management and Coordination activities of Audi AG - (hereinafter “Ducati”).
