The third chapter of a collaboration between two brands that share the values of style, performance and engineering excellence. Following on from the Diavel 1260 Lamborghini and Ducati Streetfighter V4 Lamborghini, Panigale V4 Lamborghini is another bike that will capture the imagination of fans at first glance, blending technology, performance and beauty as if by magic.
This latest episode stars the most sophisticated and high-performance models in the brands’ product ranges, the Panigale V4 S, the latest generation Ducati Superbike, and the Lamborghini Revuelto, the new reference in the world of super sports cars. The two top-of-line vehicles are equipped with the finest, most high-performance engines, the very embodiment of the technical philosophies and design approach: the Ducati Desmosedici Stradale engine and the Lamborghini V12.
| Panigale V4 Lamborghini | |
|---|---|
| Engine | |
| Type | Desmosedici Stradale 90° V4, counter-rotating crankshaft, Desmodromic timing, 4 valves per cylinder, liquid-cooled |
| Displacement | 1,103 cc |
| Bore x Stroke | 81 x 53.5 mm |
| Compression Ratio | 14.0:1 |

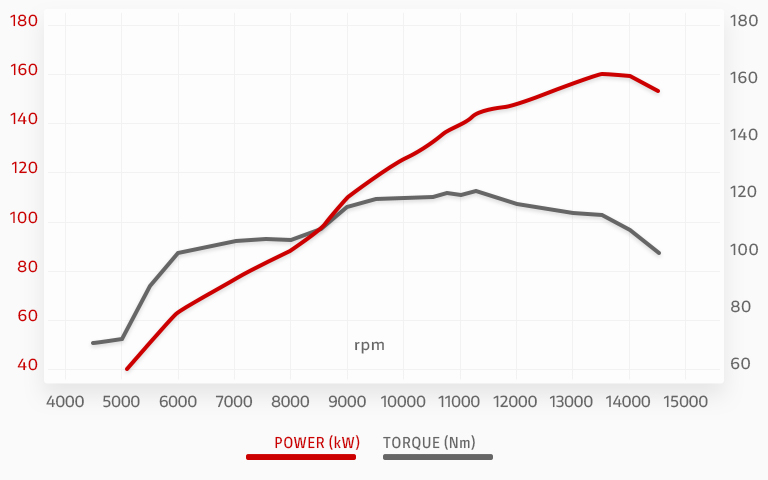

| Power | 160.7 kW (218.5 hp) @ 13,500 rpm |
| Torque | 122.1 Nm (12.45 kgm - 90.1 lb ft) @ 11,250 rpm |
| Fuel Injection | Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system |
| Exhaust | 4-2-1-2 system, with 2 catalytic converters and 6 lambda probes |
| Transmission | |
| Gearbox | 6 speed with Ducati Quick Shift (DQS) up/down 2.0 |
| Primary drive | Straight cut gears, Ratio 1.80:1 |
| Ratio | 1=36/15, 2=34/17, 3=33/19, 4=32/21, 5=30/22, 6=27/22 |
| Final drive | Chain 520, Front sprocket 16, Rear sprocket 41 |
| Clutch | Hydraulically controlled slipper dry clutch, Self bleeding master cylinder |
| Chassis | |
| Frame | Aluminium alloy "Front Frame" with optimised stiffnesses |
| Front suspension | Öhlins NPX 25/30 (SV) S-EC 3.0 pressurised 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 3.0 event-based mode |
| Front Wheel | Forged aluminium alloy 3.50" x 17" |
| Front Tyre | Pirelli Diablo Supercorsa SP-V4 120/70 ZR17 |
| Rear suspension | Fully adjustable Öhlins TTX36 (SV) S-EC 3.0 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 3.0 event-based mode. Aluminium Hollow Symmetrical Swingarm |
| Rear Wheel | Forged aluminium alloy 6.00" x 17" |
| Rear Tyre | Pirelli Diablo Supercorsa SP-V4 200/60 ZR17 |
| Wheel Travel (Front/Rear) | 125 mm (4.9 in) - 130 mm (5.1 in) |
| Front Brake | 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Hypure® 4-piston calipers with Race eCBS. Self bleeding master cylinder. |
| Rear Brake | 245 mm disc, 2-piston caliper with Race eCBS |
| Instrumentation | Digital unit with 6,9" TFT display and Optical Bonding - 1,280 x 480 px resolution |
| Dimensions and Weights | |
| Wet weight no fuel | 185 kg (408 lb) |
| Seat Height | 850 mm (33.5 in) |
| Wheelbase | 1,485 mm (58.5 in) |
| Rake | 24° |
| Trail | 98 mm (3.86 in) |
| Fuel Tank Capacity | 17 l - 4.49 gallon (US) |
| Number of Seats | Single seat |
| Equipment | |
| Safety Equipment | Riding Modes, Power Modes, Race eCBS, Ducati Vehicle Observer (DVO), Ducati Traction Control (DTC) DVO, Ducati Wheelie Control (DWC) DVO, Ducati Slide Control (DSC), Engine Brake Control (EBC), Ducati Brake Light (DBL), Chain guard |
| Standard Equipment | Ducati Power Launch (DPL) DVO, Ducati Quick Shift (DQS) up/down 2.0, Full LED headlights with Daytime Running Light (DRL), Ducati Electronic Suspension (DES) 3.0 with Öhlins Smart EC 3.0, Lithium-ion battery, Quick adjustment buttons, Pit Limiter, Auto-off indicators, Forged aluminium wheels, Akrapovič type-approved muffler with titanium alloy body and carbon fibre endcaps, Billet adjustable rider peg supports, Smoked racing windshield, Premium Alcantara seat, Billet brake and clutch levers, Billet upper triple clamp with laser-etched bike progressive number, Carbon fibre bodywork parts (full fairing, number plate holder, heel guards, front and rear mudguards, wings, pinion cover, swingarm guards, fuel tank covers, exhaust cover, chain cover, dashboard covers, rad-duct, tail covers, backrest, engine cylinder head cover), Dashboard key-on animation with bike progressive number, Ignition key with bike name and progressive number on aluminium plate |
| Provided Equipment | Billet racing fuel tank cap*, Carbon fibre open clutch cover*, Carbon fibre ducts for brake cooling*, Transparent windshield, Billet aluminium handlebar balancing weights, Number plate support and rearview mirror removal kits*, Functional rider seat, Rear stand, Bike canvas, Authenticity certificate, Wooden shipping crate |
| Ready for | Ducati Data Logger (DDL), Anti-Theft, Cruise Control, Tyre Pressure Monitoring System (TPMS), USB port, Ducati Multimedia System (DMS), "Turn By Turn" navigator |
| Warranty | |
| Warranty | 24 months unlimited mileage |
| Annual Service | 12 months |
| Oil Service | 12,000 km (7,500 miles) / 24 months |
| Valve Clearance Check | 24,000 km (15,000 miles) |
| Emissions and Consumption | |
| Standard | Euro 5+ |
| CO2 Emissions | 151 g/km |
| Consumption | 6,5 l/100 km |
| Emissions and Consumption | |
| Notes | *: Equipment not for road use
Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information |
The pictures and images of some components may refer to prototypes that could be subject to changes, also of significant nature, in the process of industrialisation and are for information and reference purposes only; they are therefore in no way binding for Ducati Motor Holding S.p.A. - Sole Shareholder Company, subject to the Management and Coordination activities of Audi AG - (hereinafter “Ducati”).
